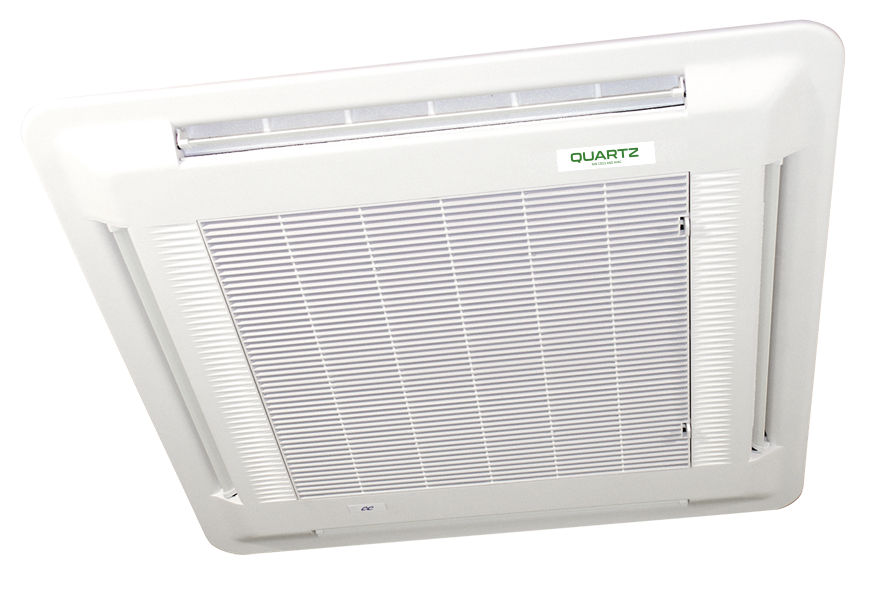

CWC 600 & 875 Chilled Water Ceiling Cassettes

The Quartz CWC and CWC(h) product range is designed with rapid installation and easy maintenance in mind. They offer the perfect solution to provide a comfortable environment in offices, shops, educational establishments, hospitals and other applications where floor and wall space is at a premium. Quiet operation and high outputs with cooling duties up to 8kW* make this an ideal choice for any project.

Specification

  • Unique 1-piece lightweight chassis for easy installation and servicing
  • The ingenious chassis / drip tray construction allows for simple cleaning and disinfection, making the units an ideal choice for medical applications
  • 600mm x 600mm (8 models of cool & cool / heat variations)
  • 875mm x 875mm (6 models of cool & cool / heat variations)
  • Remote electrics enclosure
  • Painted fascia finishes to specific RAL references. Standard fascia / grille is RAL 9001
  • Electric heater options
  • Wall mounted controllers with Infra-red handset
  • Motorised vanes for CWC(h)600 & CWC(h)875 for downwards air deflection
  • Fresh air inlet spigot
  • Foam blanking kits
  • Branch kit for remote ducting
  • Heating only applications
  • Unit Mounted PICV configurations
  • *Cooling capacities at standard UK conditions
